BREAKAWAY SERIES
Thoracic section Drops down to relieve pressure on the abdominal area. Available with up to three drop sections.
Key Features
Advanced drop-section technology meets ergonomic design for optimal treatment outcomes
Thoracic Breakaway Section
Thoracic section drops down up to 6" to relieve pressure on the abdominal area
Tilting Headrest
Headrest tilts down and up, or raises straight up to 6" above body cushions
Elevating Sections
Thoracic and lumbar elevating sections with knee break and leg extension

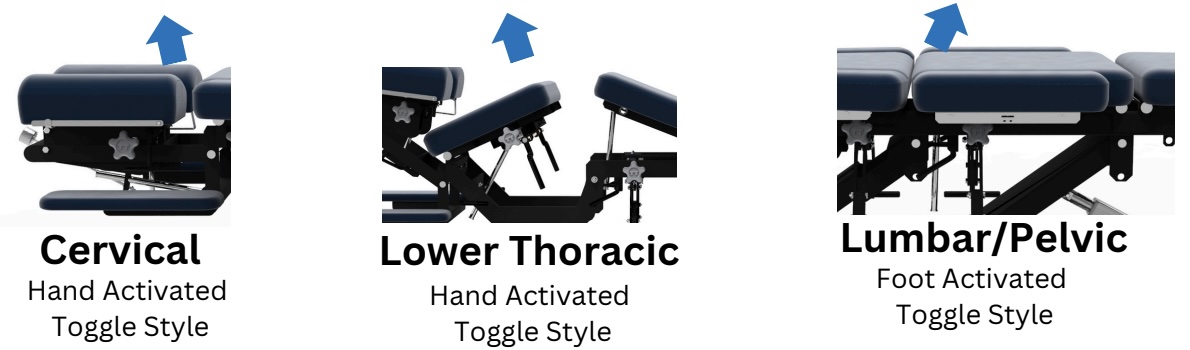

Add Up to 3 Drop Sections
Cervical and thoracic hand-activated drops, and a lumbar foot-activated drop
Adjustable Height
Easy manual pump or an electric lift with a standard (6") or extended (16") range
High-Density Foam
2" high-density foam with comfort layer topper for added patient comfort
Healthcare-Grade Upholstery
Premium double-stitched healthcare-grade upholstery available in a variety of colours
Premium Construction
Welded steel construction with powder-coated finish
Maintenance-Free Design
Self-lubricating bushings and stainless steel shafts to prevent corrosion and wear
Product Gallery
Explore our range of BREAKAWAY SERIES treatment tables
BREAKAWAY 7
Electric Elevation 18"-33"
BREAKAWAY 5 E
Electric Motor With 2 Foot Pedals Elevation Range 19" - 26" or 23" - 30"

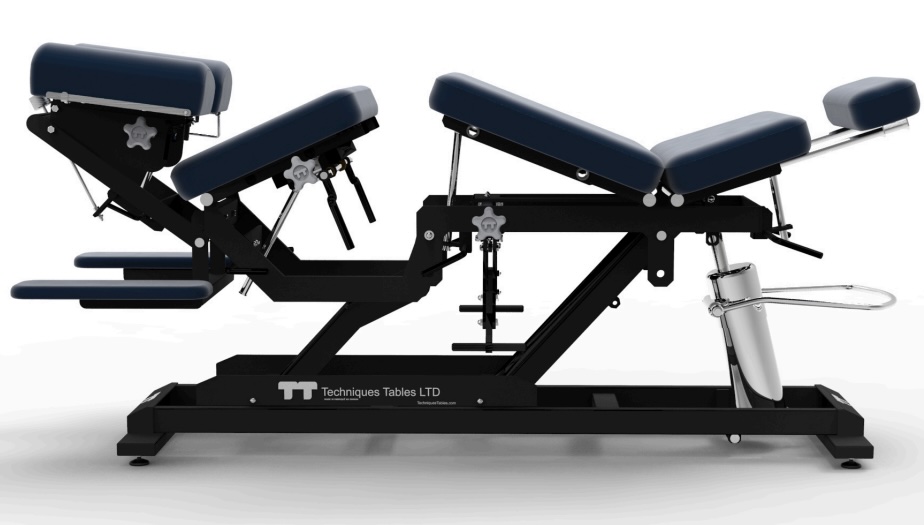

BREAKAWAY 5 P
Manual Pump Foot Activated Elevation Range 19" - 26" or 23" - 30"
Technical Specifications
Precision engineering meets clinical requirements
Table Width
21" Standard 24" optional
Table Length
72" table length + 6" with extended leg ext
Weight Capacity
1000 LBS
Height Range
6" for 5 series 16" for 7 series
Power Supply Electric
120 / 230 Dual voltage motor
Electric Motor Speed
20 sec for full range bottom to top
Pump Elevation
Hydraulic fluid pump activated
Pump Elevation speed
Approximately 20 pumps full range bottom to top
Options
Available drop section configurations and features
Experience the BREAKAWAY Difference
Precision drop-section technology for superior patient care
